Refined Construction First!
- Accuracy ±3cm
- 3D Visual Guidance
- HMI Platform
- E-Fence Warning
- Resume from Breakpoint
- Remote Control Unmanned Mode
- Adaptive Learning Algorithm
- Online Support & OTA
GNSS and multi-type sensor modules lead to high-precision construction, and give operators of all skill levels the ability to be more productive than ever before! Safety guarantee, cost reduction, efficiency improvement and profit boost in engineering construction
High-Precision Construction
Complies with the national standard "GB 27948-2020": clears particles smaller than 20μm

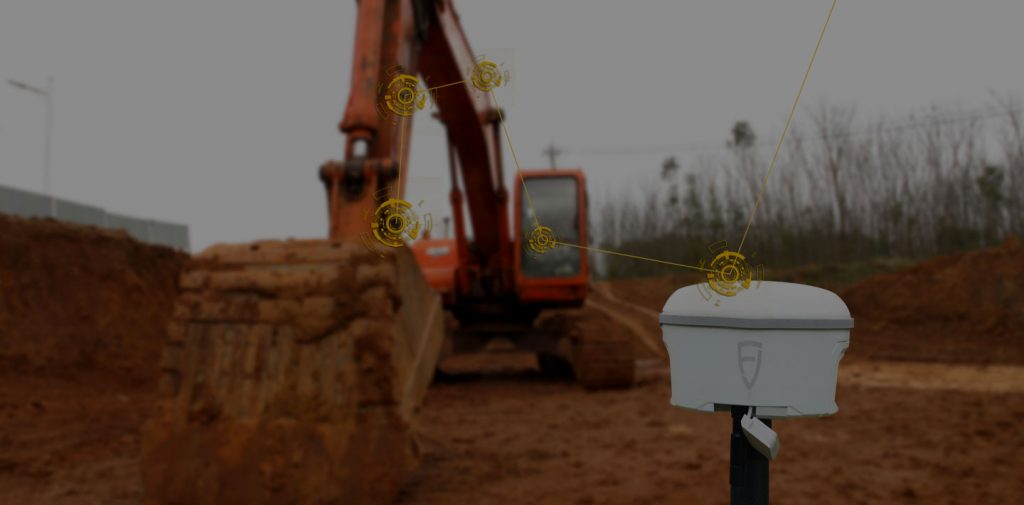

Accurate positioning in real time based on GNSS and RTK
The real-time access to the coordinates of movable arms and bucket rod
Help us to know exactly where the bucket teeth are and to acquire 3D guidance
High-Precision Construction
Under assisted mode, the bucket and boom will operate automatically while operator just needs to control arm
There is no huge gap between a newbie and an oldbie
Operation accuracy 3cm based on multi-type sensor modules, leading the industry
Refined Construction
Slope Brushing
Land Leveling
Wading Operation
Deep Excavation
Task Visualization

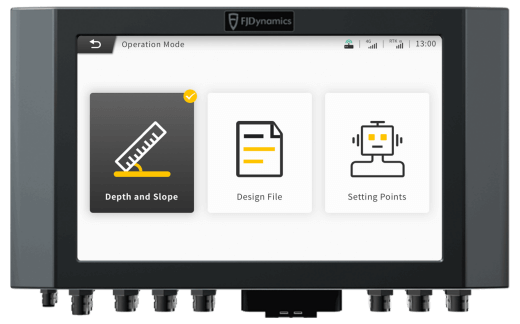

Slope and Depth Setting
Set slope and depth as required navigation will be provided by system

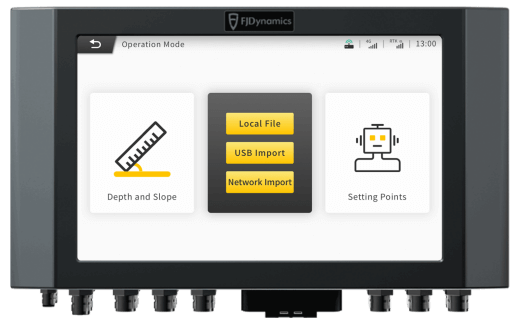

CAD Drawing Import
The construction drawings could be imported into control system directly to assist construction

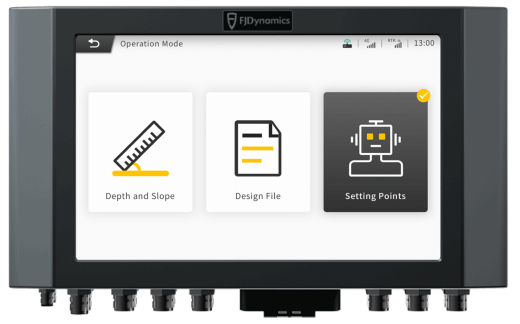

Custom Design
Without design drawings operators could set datum points on the spot Combine with the built-in transection templates 3D visual files could be synthesized for a smooth start
Safety Guarantee
Product Configuration and Functions
Level 1
Guidance
- 4G Antenna
- Sensor Modules
- GNSS Antenna
- Control Terminal
Level 2
Assited
- Proportional Valve
- All Level 1 Functions
Level 3
Unmanned/Remote Control
- Wi-Fi Camera
- LiDAR x2
- Remote Control
- All Level 2 Functions

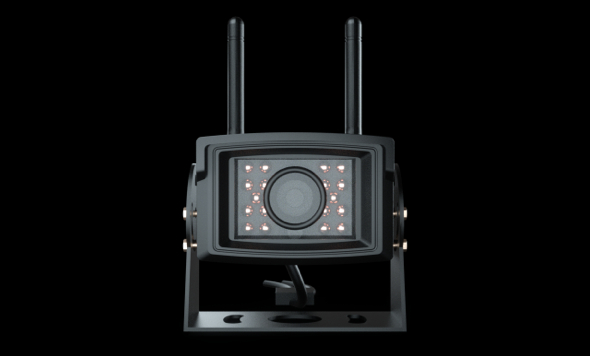

Remote Control & Wi-Fi Camera

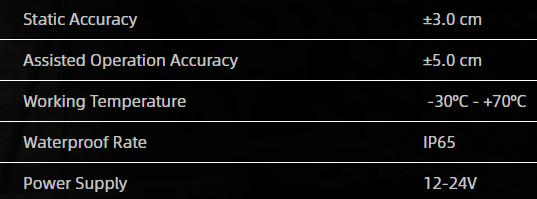

SPECIFICATIONS
Static Accuracy
Assisted Operation Accuracy
±3.0 cm
±5.0 cm
Working Temperature
Waterproof Rate
-30°C – +70°C
IP65
12-24V
